LRC radio controlled overfill prevention product overview

LRC-SMALL

LRC SMALL REMOTE

LRC RC2

LRC CHARGER

LRC REC2

LRC OP4

LRC-Small is a complete radio controlled overfill prevention system. It is designed for the filling of stationary and mobile tanks (e.g. tank trucks).

The following functions can be carried out with LRC Small:

• Motor (pump) start / stop
• Filling start / stop
• Rotational speed control
• Filling process interruption
• Wind / rewind hose drum
• Dead man's function
• ANA function (Germany)
• Automatic fill stop

The following types of limiters can be addressed:

• Limit value transmitter according to TRbF (PTC thermistor probes - German standard EN13616)
• Float probes (nose on 10h)
• Optical limit switches (Swiss standard, ship standard BeNeLux)
• Probes with relay contact

Overfilling is reliably prevented in combination with limit probes. The devices are approved for use in both potentially explosive and non-hazardous areas.

Applications LRC Small:

• Discharge of all liquid products and powdery / granular substances from the tanker / container to the tank
• Loading of tanker / container at the depot and terminal wagon refueling / wagon unloading
• Ship, boat, aircraft and helicopter refueling
• Industrial applications for radio remote control of all kinds in hazardous areas.

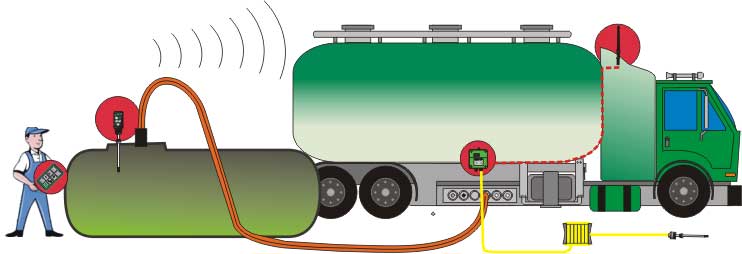

Application field/ Pictures of LRC
